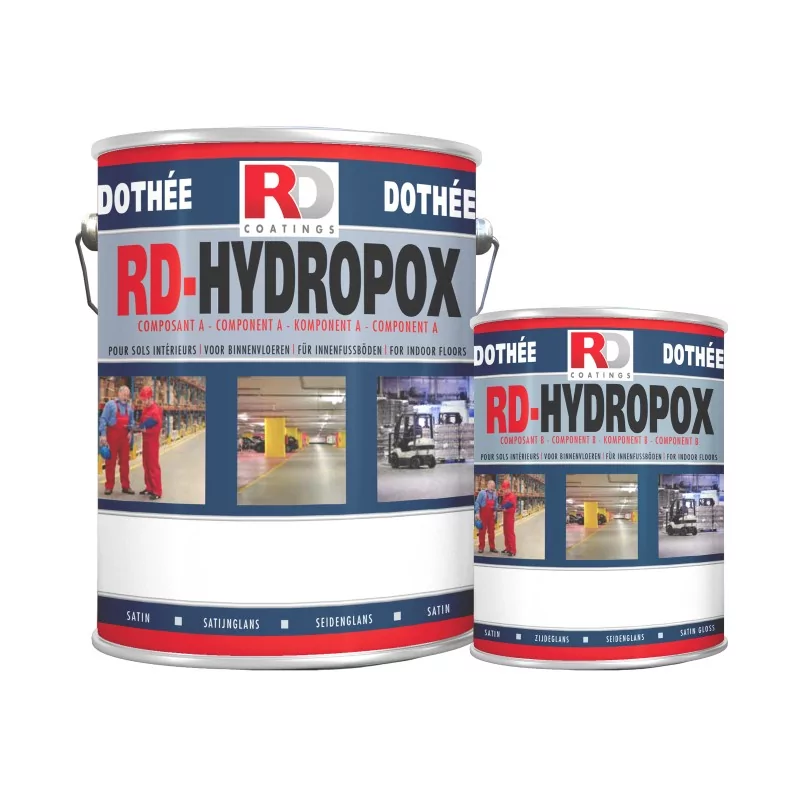

    RD-Hydropox

    Technical sheet

    Coating system for floors and walls specially formulated for the long-term protection against wear, abrasion, and chemical spills.

    Very hard and abrasion resistant epoxy coating

    ·         Forms a hard and resistant film easy to clean and to decontaminate.
    ·         Excellent resistance to various aggressions, including carbon black from tyres, greases, oils, etc.
    ·         Adheres directly to concrete, tiles, brick, etc.
    ·         Approved for use in the food industry.

    RD-Hydropox is a lasting solution for floors subject to heavy traffic. It is a VOC-free product that can be used safely inside buildings without the need for containment during application, reducing costs and disturbances. It is also suitable for application on walls that are subject to various kinds of contamination, and the resulting film can be easily cleaned and decontaminated using a variety of methods. A special version for Green Concrete is available: RD-Hydropox H

    Available colors

    Click here to chose your color
    RAL 1000 Lorem Ipsum

    Packaging

    1 kg
    Surface 1 coat: 3.33m²
    4 kg
    Surface 1 coat: 13.33m²
    15 kg
    Surface 1 coat: 50.00m²
    Total quantity selected (Kg): 0
    Theoretical surface that can be painted in 2 coats with the ordered quantity (*) : 0 m²

    (*) the quantity indicated is theoretical and is based on a standard consumption of the product as described in the technical sheet below. This consumption is also influenced by the nature of the support and the method of application.

    Technical sheet

    Description of the product

    USE:

    Coating system for floors and walls specially formulated for the long-term protection against wear, abrasion, and chemical spills.

    FEATURES:

    RD-Hydropox is a two-component water-based epoxy for indoor use.  It protects various type of surfaces against intensive wear, abrasion, soiling, and other aggressive chemicals such as solvents, cleaning agents, etc.

    RD-Hydropox is indicated for the protection of industrial floors, garages, car parks, workshops, ...; walls and floors requiring frequent and intensive cleaning like in the food industry; and any other equipment or infrastructure subject to intensive or aggressive use: drainage channels, water tanks (non-potable), machinery, etc.

    RD-Hydropox is water-based, easy to handle, safe and has no fire risks.

    It does not contain any solvents neither any VOCs.

    Virtually odour free, it does not affect neighbouring occupants and can therefore be used in occupied buildings.

    RD-Hydropox is formulated with high quality raw materials. After drying, the coating forms a hard and wear resistant film that will resist to intensive traffic and cleaning.

    RD-Hydropox is part of the SCS – Single Coating System - product group.

    SUBSTRATES:

    Can be applied directly to almost any concrete, cement, and masonry surface.
    For ferrous and non-ferrous metals, first apply one or two coats of RD-Monoguard.
    For synthetic substrates (hard), glass, ... first apply a layer of RD-Multiprim.

    Systems

    Floors: Industrial floors, car parks, garages:

    Wet film thickness in microns / mils

    Dry film thickness in microns / mils

    Consumption per m² / ft² per gallon

    Comments

    Primer

    RD-Hydropox

    210 / 8,4

    105 / 4,2

    0,30 Kg / 194

    1st layer diluted with 10% water if the surface is porous.

    Finish

    RD-Hydropox

    210 / 8,4

    105 / 4,2

    0,30 Kg / 194

    TOTAL



    210 / 8,4

    0,60 Kg / 97



    Walls: concrete, cement or ceramics:

    Wet film thickness in microns / mils

    Dry film thickness in microns / mils

    Consumption per m² / ft² per gallon

    Comments

    Primer

    RD-Hydropox

    140 / 5,6

    70 / 2,8

    0,20 Kg / 290

    1st layer diluted with 10% water if the surface is porous.

    Finish

    RD-Hydropox

    140 / 5,6

    70 / 2,8

    0,20 Kg / 290

    TOTAL



    140 / 5,6

    0,40 Kg / 145

    Anti-skid system on floors:

    1/ Broadcast sand or quartz (silicic sand 99% purity 0,3-1mm) on the freshly painted first coat of RD-Hydropox. Broadcast until rejection or lightly depending on the required roughness.
    2/ Wait at least two hours until the coating is dry.
    3/ Brush off the non-adhering sand.
    4/ Apply the second coat of RD-Hydropox.

    On ferrous and non-ferrous metals (hard, not flexible):

    Apply a first coat of RD-Monoguard followed by RD-Hydropox.

    On synthetic surfaces (hard, not flexible) or glass:

    Apply a first coat of RD-Multiprim followed by RD-Hydropox.

    Indicated consumption is theoretical and does not consider potential losses during application. It can also be influenced by the porosity of the substrate.

    Application instructions

    APPLICATION CONDITIONS:

    Ambient temperature: minimum 10° C (50°F) – Optimal between 12° and 25°C (54° and 77°F).
    Relative humidity: maximum 80 %
    Dew point > 3°C (5°F)
    The screed may not contain more than 4% humidity.

    APPLICATION MEANS:

    Brush, roller, or airless-spraying equipment (nozzle opening: 021-023)

    PREPARATION OF THE SUBSTRATE:

    The substrate must be dry, degreased and dust-free.

    Smooth screeds must be treated beforehand, different options are possible:
    - Sand the surface to obtain roughness
    - Lightly etch the surface with an acidic solution
    - Apply a layer of RD-Multiprim.

    Repairs on concrete should be made using RD-Cement Filler.

    MIXING RATIO:

    By weight: Component A: 860 g - Component B: 140 g

    By volume: 4,8 : 1

    The hardener and the base must be mixed scrupulously respecting the indicated ratio. Do not leave product in the bottom of the hardener packaging. A bad mixture can cause damage, such as bubbles, poor hardening, matt and weaker spots.

    Mixing:

    • Mix mechanically long enough (for +/- 3 minutes for 15 kg of product) the two components until a uniform mass of one colour is obtained.

    • After mixing, let the mixture rest for about 5 minutes to allow the product to cool and eliminate the formation of air bubbles.

    POT-LIFE:

    2 hours at 20°C

    DILUTION:

    Dilute the first coat by maximum 10% with water when applied as primer on a porous substrate

    DRYING TIME (20°C - 68°F):

    Touch dry: after 8 hours

    Recoatable:
    • at 10 ° C / 50 ° F, at least 24 hours and 48 hours maximum,
    • at 20 ° C / 68 ° F, at least 12 hours and 48 hours maximum.

    In the event of a longer overcoating time, it will be imperative to sand the first layer to ensure optimal adhesion of the next layer.

    Final hardness after 7 days

    RD-Hydropox needs 72 hours at 20° C/68° F to obtain maximum mechanical properties. For full chemical resistant properties, 7 days are required at a temperature of 20 ° C/68° F.

    This means that during this period, no liquids, including water, should come in contact with the coating.

    CLEANING OF TOOLS:

    Water

    SPECIFICITIES:

    Mix well before use.

    Technical data

    FINISH (Gardner 60°):

    Satin +/- 50% +/- 5

    COLOURS:

    White, RAL, NCS and bespoke colours.
    Available on RD Coatings dispensing system.

    DENSITY:

    1.45 +/- 0.05 g/cm³

    SOLIDS CONTENT:

    In weight:  65 % +/-2
    In volume: 50 % +/-2

    VISCOSITY:

    40 - 70 P (Brookfield 20RPM)

    VOC CONTENT:

    0 g/L

    FLASH POINT:

    Not flammable

    STORAGE:

    24 months, keep away from frost and store away from heat.

    Norms and tests

    ABRASION RESISTANCE TABER

    ASTM D4060

    OVERALL MIGRATION

    EN 1186

    PENCIL HARDNESS

    ISO 15184

    PERSOZ HARDNESS

    ISO 1522

    CHEMICAL RESISTANCE

    INTERNAL TESTINGS

    ADHERENCE CROSS CUT

    ISO 2409

    ISO 16000-6 / VOC Classification in France

    Safety data

    Information related to hygiene and to safety can be found in the Safety Data Sheet available on request.

    These specifications are given for information. Since the manufacturer is not able to check the application of the products, he cannot accept any responsibility for it. This technical data sheet replaces all previous editions.

    VERS. F009/230220
